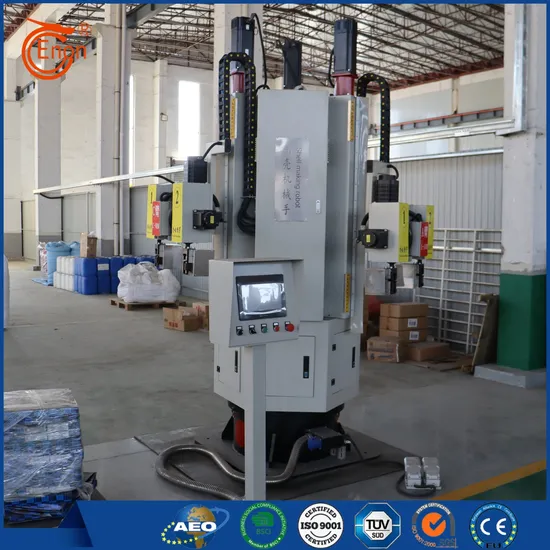

シェル製造ライン用の耐久性のあるマニピュレーター
シェル製造ライン用の耐久性のあるマニピュレーター
シェル製造ライン用の耐久性のあるマニピュレーター
シェル製造ライン用の耐久性のあるマニピュレーター
シェル製造ライン用の耐久性のあるマニピュレーター
シェル製造ライン用の耐久性のあるマニピュレーター
シェル製造ライン用の耐久性のあるマニピュレーター
シェル製造ライン用の耐久性のあるマニピュレーター

シェル製造ライン用の耐久性のあるマニピュレーター

お支払い方法の種類:T/T
インコタームズ:FOB,CIF,EXW
最小注文数:1 Piece/Pieces
輸送方法:Ocean,Land
ポート:Qingdao
Model:
  • YN-JXS-3/6
option:
  • YN-JXS-3/6
  • $38240- /Piece/Pieces

38240USD

  • 製品の属性
  • 梱包と配送
  • 製品の説明
  • 供給能力と追加情報
製品の属性

モデルYN-JXS-3/6

ブランドエノン

原産地中国

古いものと新しい新しい

ビデオ工場検査提供

機械試験レポート提供

マーケティングタイプ新製品2020

コアコンポーネントの保証期間1年

コアコンポーネントPLC

保証期間1年

コアセールスポイント操作が簡単

保証対象外のサービスビデオテクニカルサポート, フィールドメンテナンスおよび修理サービス, オンラインサポート

ローカルサービスを提供する場所(海外のサービスアウトレットがある国)無し

ショールームの場所(海外にサンプルルームがある国)無し

該当する業界製造工場, その他

梱包と配送
販売単位: Piece/Pieces
パッケージ型式: 木製のボックスパッケージ
写真の例:

The file is encrypted. Please fill in the following information to continue accessing it

製品の説明
default name
1、技術パラメーター
Lifting rotation speed 180 °/0-10 seconds (adjustable)
Equipment structure Three arms and six hands
Center distance between two string shell moulds 500mm
Weight of single string shell mold ≤30kg

Center distance between two string shell moulds

Center distance between two

work efficiency ≥1 string/20-25s
Rotation angle of main column 0-360°(Continuous rotation)
Rotation index of main column 120°/3 stations
Rotation speed of main column 90 °/0-10s (adjustable)
Movement angle range of clamping module -10 ° to 135 ° (centered on the vertical line of the ground plane)
Up and down (z-axis) stroke of station 0-700mm (adjustable)

Technical indicators

Technical parameter

Swing rotation speed 180 °/0-10 seconds (adjustable)
Self rotation angle of workpiece 360 ° (continuous rotation)
Self rotation speed of workpiece 5-40 rpm (adjustable)
Pick up mode Manual hanging
Fixture mode Pneumatic automatic locking
Quickly replace tooling Quickly replace adaptive clamps according to different hooks

2、利点の説明

革新的なロボットアームを紹介します。この産業用ロボットは、費用対効果が高く、環境に優しいものであり、長持ちするように構築されているため、製造ワークショップに最適な機能になります。

  • スマートオートメーションシステム
  • 予算に優しい産業用ロボットアーム
  • 省エネ構造
  • 耐久性があり、長持ちします
  • 既存の生産ラインとの簡単な統合頑丈なデザインとエネルギー効率の高い機能では、このロボットアームはさまざまな製造タスクに優れており、正確で一貫したパフォーマンスを提供します。自動車、航空宇宙、その他の業界で使用されるかどうかにかかわらず、このロボットは生産プロセスを合理化します。ユーザーは、その効率、精度、使いやすさ、およびメンテナンスの要件が低いことを評価します。さまざまなフックやツーリングに迅速に適応する能力は、市場に出回っている他のロボットアームとは一線を画しています。

仕様:

  • アプリケーション:このロボットアームは、効率と出力を向上させようとする住宅生産ラインに最適です。その汎用性と信頼性は、製造能力を強化しようとするワークショップにとって貴重な資産となっています。
供給能力と追加情報

包装木製のボックスパッケージ

生産高120piece/year

輸送方法Ocean,Land

原産地中国

についてのサポート120piece/year

認証 ISO 9001:2015

ポートQingdao

お支払い方法の種類T/T

インコタームズFOB,CIF,EXW
